| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Suitable Drill Rod: | 60,73,76,83,89mm Or Customized | Application Rock Formation: | Weathered Rock Drilling |
|---|---|---|---|
| Size: | 108,127,145,165mm Or Customized | Hole Diameter: | 140mm=180mm |
| Name: | Trihawk Bit | Suitable HDD Drill Rig: | Vermeer, Ditch Witch, Case, American Auger, Etc |
| High Light: | HDD Tricone Drill Bit,Horizontal Directional Tricone Drill Bit,HDD Tricone Drilling Bit |
||

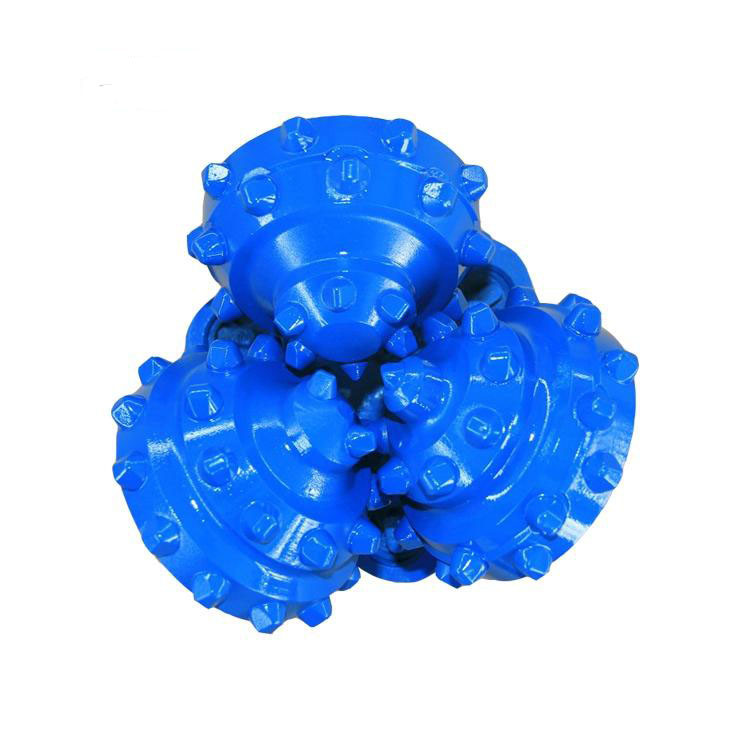

High quality Horizontal Directional Drilling Tricone Drill Bit Has Long Service Life
Product parameters
| Size | 108,127,145,165mm or Customized |
| Suitable drill rod | 60,73,76,83,89mm or Customized |
| Suitable HDD drill rig | Vermeer, Ditch Witch, Case, American Auger, etc |
| Application rock formation | Weathered rock drilling |
| OD | 110mm-150mm |
| Hole diameter | 140mm=180mm |
| Drill depth | 15m |
| Hole angle | 16 |
| Drill pipe diameter | ≥ 60 |
| Applicable Industries | Construction works |
| Machine Type | Drilling Tool |
| Material | Carbon steel, Stainless Steel |
| Processing Type | Forging |
| Use | Horizontal directional drilling |
| Thread | NC23 |
| Weight | 70kg |
| Packaging | Wooden case |
| Color | Blue or Customized |
| Thread | 4 1/2""IF box and pin |
| Diameter of hole | 140mm-180mm |
Introduction
1. The high wear resistance alloy sand is used to harden the back of the palm and all the surfaces of the teeth, thus greatly improving the service life of the bit.
2. The optimized number of tooth rows, teeth, exposed teeth height and unique tooth shape give full play to the cutting ability and cutting speed of the drill;
3. The steel tooth cone bit is suitable for soft formation, soft to medium hard bottom layer, and is widely used in oil fields, mines, geological exploration, hydrological exploration, engineering piling, geothermal development, water wells and other drilling fields.
Advantages
Perfectly balanced cutting design for smooth, efficient operation.
Cutter teeth available with carbide hardfacing for maximum durability.
Ouickly and easily change out carbide cutter teeth with straight-thru knockout holes.
Steering face has a conical shape for quicker reaction to directional pushes.
Smooth running with minimal vibration to drill stem and drill rig.
Dome carbides provide great wear resistance without cutting the top of the hole for great steering.
Minimize the chance of clogging with a built-in check valve.
Features
Eagle Claw can rip through sandstone, shale and cobbles.
Quick-change carbide cutter teeth and a balanced cutting design to improve stability and decrease vibration.
Radical three-tooth carbide cutting action.
The conical turning surface can quickly respond to directional pushing.
Used in
Eagle Claw can rip through sandstone, shale and cobbles for horizontal directional drilling
