| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 7-20work days |
| Payment Terms: | T/T |
| Model: | CSJ-FN-200C | Capacity (m3/h): | 200 |
|---|---|---|---|
| Slurry Pump Power (Kw): | 37 | Slurry Pump Pressure (MPa): | 1.0~2.0 |
| Shale Shaker Power(Kw): | 3 | Shale Shaker Vibration Force(KN): | 60 |
| Screen Size (mm): | 2100x1200 | Cone Number: | 8 |
| Separation Size (μm): | 10-30 | Total Power (KW): | 40 |
| System Max.Size(mm): | 2400*2300*2400 | System Weight (Kg): | 3500 |
| High Light: | 200m3/h HDD Mud Recycling System,Mud Recovery System,Well Drilling Mud Recycling System |
||
High quality Mud recycling System Linear Motion Shale Shaker In Well Drilling
Introduction
The mud recovery system is mainly used for HDD drilling projects with processing capacity less than 200GPM. Its biggest advantage is that the overall size of the system is small, it occupies less space and is easy to move. The reason is that this system uses the two-stage treatment vibrating screen developed by Zhongshi for market needs - SSZS3/2 double deck linear vibrating screen. The SSZS3/2 vibrating screen is equipped with two layers of screens with different mesh numbers, which can realize the function of two-stage screening processing at the same time. It has the advantages of compact structure, small volume, light weight, etc., which can fully save installation space, transport costs, and greatly improve the working efficiency. Thus, the overall size of the mud recovery system is effectively reduced.
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

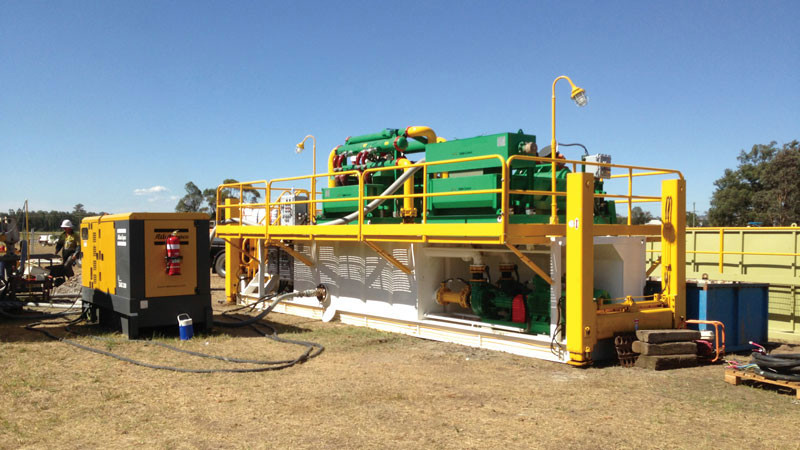

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
