| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Power (Kw): | 2x55 / 55 / 45 / 30 | Flow (m3/h): | 2x240 / 240 / 200 / 180 |
|---|---|---|---|
| Matching Pump: | 2xCP68-55 / CP68-55 / CP68-45 / CP56-30 | Lift (m)/(ft): | 36/118 , 33/108 , 28/92 |
| Capacity: | 240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h | Voltage: | 380V/460V Or Customized |
| Pressure (Mpa): | 0.25~0.40 | Inlet Pipe (mm)/(in): | DN150/6 |
| Highlight: | single Jet Mud Mixer,380V mud mixing hopper,DN150 mud mixing hopper |
||

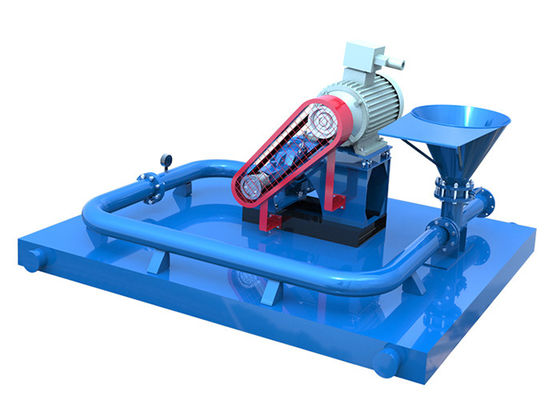

Hopper Solid Control Sand Pump Single Jet Mud Mixer
Jet Mud Mixer Safe And Stable And Can Be Moved Conveniently
Advantages
The drilling fluid flow into the jet pump with certain pressure,in the jet pump fluid spouts out from jet nozzle first, then flows into shear pipe through mixing chamber. The material is added from the hopper to the mixing hopper and flows into the shear tube with the material flow. In the process, they are dispersed and mixed. As the mixture flows out of the shear tube, it enters the drilling fluid tank.
The shear pipe is hollow and it can expand gradually based on certain curved surface. It is mainly used to enlarge shearing force inside the pipe to disperse the material further and increase the mixture pressure head, this will make it easy to enter into circulating tank.
Bernoulli effect is adopted in shear pipe which is flow rate is rapid with low pressure, and slow with high pressure. Pressure is low in the chamber when fluid spouts out in high speed from the jet nozzle; when fluid enters into the shear pipe, its section is enlarged and flow rate decreased so the pressure rises.
Product parameters
| Voltage | 380V/460V or customized |
| Matching Pump | 2xCP68-55 / CP68-55 / CP68-45 / CP56-30 |
| Capacity | 240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h |
| Power (Kw) | 2x55 / 55 / 45 / 30 |
| Flow (m3/h) | 2x240 / 240 / 200 / 180 |
| Lift (m)/(ft) | 36/118 , 33/108 , 28/92 |
| Pressure (Mpa) | 0.25~0.40 |
| Inlet Pipe (mm)/(in) | DN150/6 |
| Nozzle Caliber | Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8 |
| Hopper Dimension (mm)/(in) | Φ700*Φ150 / Φ28*Φ6 |
| Burden Speed (kg/min)/(lbs/min) | ≤100/220 , ≤80/176.4 , ≤35/132.3 |
| Density (g/m3)/(Ib/gal) | ≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7 |
| Viscosity | ≤120s / ≤80s |
| Weight (kg) | 3000 / 1800 / 1400 / 1280 |
| External dimension | 2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100 |
The main structure features
1. Sand pump and jet mixing hopper can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
2. The spraying mud mixer can effectively change the density, viscosity and water loss, enhance the material dispersion effect, and improve the mixing hydraulic head.
3. Single jet mud mixer is made up of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
