| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Tank Volume: | 5-30 ㎥ | Total Power: | 25-184Kw |
|---|---|---|---|
| Separation Stage: | 2stage / 3stage | Screen Area: | 2.2-8.4 ㎡ |
| Customized: | YES | Capacity: | 50-240 ㎥/h (200 GPM ,300 GPM,400GPM,1000 GPM) |
| Total Weight: | 5.5-20 T | Land Transport Dimension (mm): | Customized |
| High Light: | shale shaker in drilling rig,oilfield shale shaker in drilling,184Kw shale shaker |
||

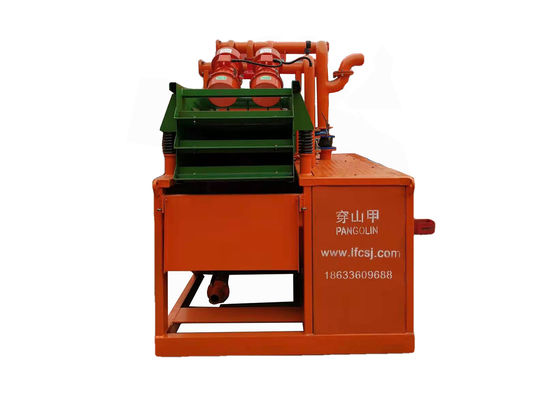

HDD Mud Recycling System With Modular Design And Small Footprint
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Product parameters
| Customized | YES |
| Capacity | 50-240 ㎥/h (200-1000 GPM) |
| Screen Area | 2.2-8.4 ㎡ |
| Separation Stage | 2stage / 3stage |
| Tank Volume | 5-30 ㎥ |
| Total Power | 25-184 Kw |
| Total Weight | 5.5-20 t |
| Land Transport Dimension (mm) | customized |
| Screen material | Polyurethane |
| Cyclone (mm) | 250 -900 |
| Impeller material | Cr26 |
| Application | Drilling |
| Specification | Can be customized according to requirements |
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
HDD Mud Recycling System Working Procedure
1. There is a drill pit at each side of drilling hole, a set of vertical slurry pump will set on top of mud pit for feeding shale shaker. The shale shaker screen will separate drilling cuttings and discharge out, fluids part will drop into sand trap through screen hole.
2. 1 or 2 or 3 sets of desander cyclone sit after shale shaker, one set of centrifugal pump will feed desander cyclong for second phase separation, solids out of desander will be discharge to shaker screen or cutting box directly and fluids over flow from desander will flow into desander compartment.
3. A quantity of desilter cyclones will sit after desander for fine solids separation, solids out of desilter will discharge to shaker screen or cuttings box, fluids over from desilter will drop into desilter compartment.
4. A mixing pump sit on tank skid for drilling mud transfer and feed mud into mud hopper for new mud remix by new chemicals. The mixing hopper can sit on top of tank or tank skid as per client’s demand.
Advantages
1. Modular design, small floor space, flexible configuration and installation according to customer requirements.
2. The side plates of mud tanks are designed with corrugated and load-supporting type, which are safer and can bear more load.
3. The system adopts a centralized electric control, being convenient for operation.
4. All equipment is designed with corrosion and wear resistance, with a long service life.
5. It is adaptable to severe drilling operating conditions, being cold-resistant, heat-resistant, explosion-proof, leakage-proof, corrosion resistant and rainproof.
6. It is simple for installation and disassembly, and convenient for frequent moving along with drilling crew.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
