| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Color: | Customized | Motor Power: | 1.94kw*2 |
|---|---|---|---|
| Weight: | 1638 Kg | Adjustable G Force: | ≤ 8G |
| Deck Angle Range: | -1° - 5° | Vibrating Mode: | Linear Type |
| High Light: | Mud Vibrating Screen Machine,Fluids Mud Vibrating Screen,Oilfield Drilling Mud Vibrating Screen |
||
Oilfield Drilling Fluids Mud Vibrating Screen Machine
Oilfield Drilling Fluids Shale Shaker Of Mud Control System
Product parameters
| Customized | YES |
| Weight | 1638 kg |
| Color | Customized |
| Vibrating Mode | Linear type |
| Motor power | 1.94kw*2 |
| Adjustable G force | ≤ 8G |
| Deck angle range | -1° - 5° |
| Starting mode | Magnetic start |
| L*W*H(mm) | 2761*1998*1428 or Customized |
| Capacity, m3/h | 45, 120, 140 |
| Vibration Motor, KW | 2x0.75, 2x1.72, 2x1.94 |
| Screen Qty, pcs | 2, 3, 4 |
| Screen Size: LxW, mm | 750x900, 700x1250, 585x1165 |
| Screen Area, m2 | 1.35, 2.63, 2.73 |
| Model | CSJ-HJ-30604 | CSJ-HJ-301075 | CSJ-HJ-601555 | CSJ-HJ-1202075 |
| Capacity (m3/h) | 25 | 60 | 120 | |
| Jet pump Power(kw) | 4 | 11 | 22 | |
| Mixing reducer(kw) | 4 | 7.5 | 2X5.5 | 2X7.5 |
| Tank volume (m3) | 6 | 10 | 15 | 20 |
| Size(mm) | 3200X1850X1900 | 3800X2000X2100 | 5300X2000X2500 | 6800X2200X2500 |
Introduction
Shale shaker is the first phase solid control device in the drilling fluid treatment system, also known as the key solid control device in the drilling mud system, shale shaker determines the performance of the entire solid control system. Besides single shale shaker, we also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor.
Advantages
The shale shakers has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance. It being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.
The main structure features
Intensity vibration is as high as 8G,and can adjust,can effective dry drilling cuttings
Electric screen box Angle adjustment, convenient and reliable, and the mechanical Angle adjustment for standby
Screen box sealed patent design, good sealing effect, long service life, and easy to replace
Screen box at the bottom of stainless steel materials, corrosion resistance and greatly improve the service life
Screen box overall heat treatment, which can meet high vibration intensity work long hours.
Field of use
Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment.

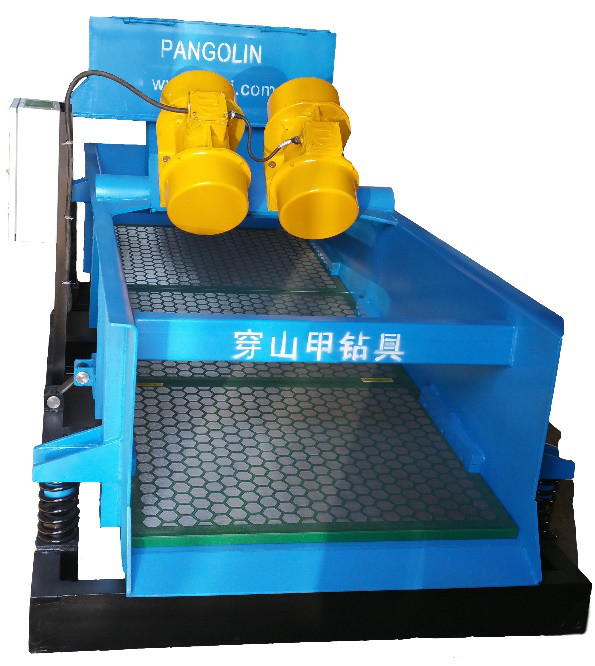

Pic Show
FAQ:
1. How to order products?
A: Please send an inquiry with a detailed project description or model.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect quality products?
A: Yes. Mature production process to ensure the quality to meet international requirements.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
